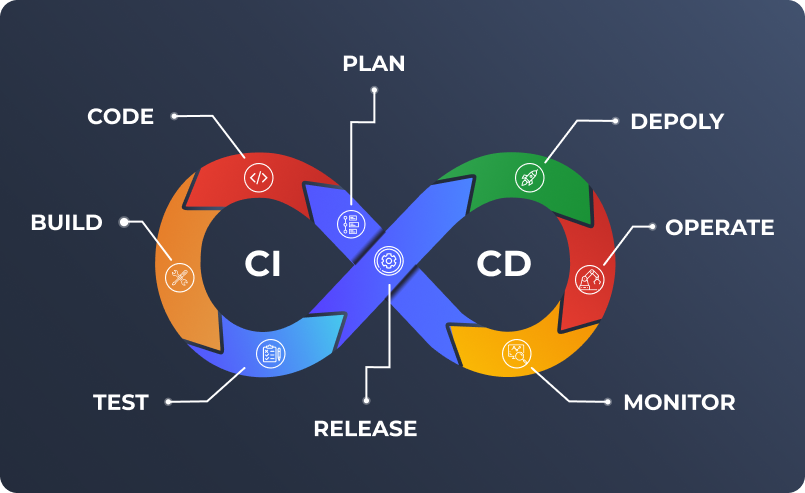

CI/CD (Continuous Integration / Continuous Deployment) :-

It is a software development practice that involves automating the build, test, and deployment processes. AWS (Amazon Web Services) provides a suite of services that can be used to implement CI/CD pipelines for software development. In this article, we will discuss how to integrate CI/CD with AWS services and provide a sample for blog writing.

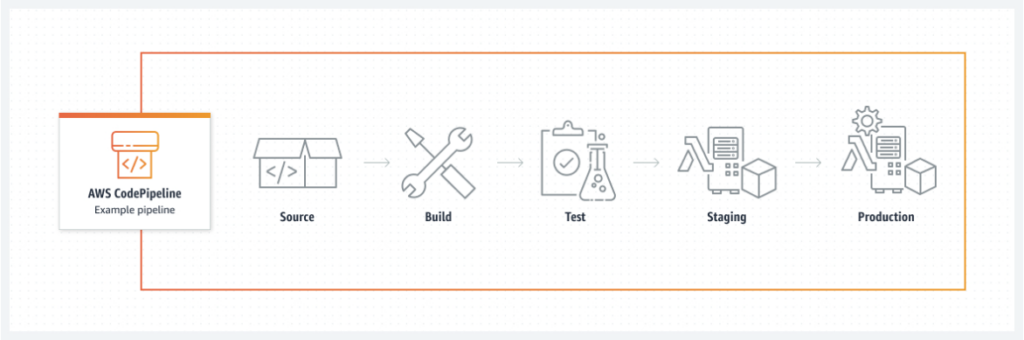

AWS Code Pipeline :-

AWS Code Pipeline is a fully managed continuous delivery service that helps automate the release process for your application. It can be used to build, test, and deploy your application automatically to various environments. Code Pipeline supports a range of source code repositories and build tools such as GitHub, Code Commit, Code Build, Jenkins, and others.

To set up a pipeline in AWS Code Pipeline, follow these steps:

» Create an S3 bucket to store your application artifacts.

» Create an IAM role to allow AWS services to access the S3 bucket and perform other operations on your behalf.

» Create a pipeline in Code Pipeline that defines the workflow for building, testing and deploying your application.

» Add deployment stages to your pipeline that deploy your application to various environments. For example, you can configure Code Pipeline to deploy your application to a staging environment for testing and then to a production environment for release.

» Add source code repository and build tool stages to your pipeline. For example, you can configure Code Pipeline to watch a GitHub repository for changes and trigger a Code Build project to build your application.

AWS Code Build :-

AWS Code Build is a fully managed build service that compiles source code, runs tests, and produces software packages that are ready to deploy. It supports a range of programming languages, build tools, and operating systems.

To use AWS Code Build with your CI/CD pipeline, follow these steps:

» Create a Code Build project that defines how your source code is built, tested and packaged.

» Configure your pipeline to trigger the Code Build project when changes are made to your source code repository.

» Code Build will automatically build your source code and produce artifacts that can be deployed to your environment.

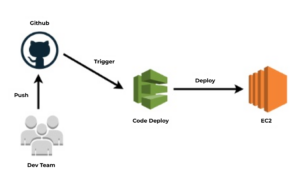

AWS Code Deploy :-

AWS Code Deploy is a deployment service that automates the deployment of applications to Amazon EC2 instances, AWS Lambda functions, and on-premises servers. It can be used to deploy code changes to multiple instances simultaneously, and it provides built-in support for blue/green deployments.

To use AWS Code deploy with your CI/CD pipeline, follow these steps:

» Create a Code Deploy application that defines the resources to which you want to deploy your application.

» Create a deployment group that specifies the instances or Lambda functions that will receive the updated application.

» Configure your pipeline to trigger a Code Deploy deployment when the build and testing stages have completed successfully.

» Code Deploy will automatically deploy your application to the specified instances or functions.

Sample CI/CD Pipeline :-

Here is a sample CI/CD pipeline that uses AWS services:

1) Source stage:

The pipeline watches a GitHub repository for changes. When changes are detected, Code Pipeline triggers a Code Build project.

2) Build stage:

The Code Build project compiles the source code, runs tests, and produces a Docker image that contains the application.

3) Test stage:

The pipeline runs automated tests on the staging environment to ensure that the application is functioning correctly.

4) Deploy to staging stage:

The pipeline deploys the Docker image to a staging environment using AWS Code Deploy.

5) Deploy to production stage:

Once the pipeline receives manual approval, it deploys the Docker image to the production environment using AWS Code Deploy.

6) Approve stage:

If the tests pass, the pipeline waits for manual approval before proceeding to the next stage.
